Document Title: US Burke Millrite MV-1 Milling Machine Manual
Number Of Pages: 20
Condition Of Original: Good
Scan Type: Grayscale rendering of Black & White contents
Scan Quality: Good
Description: This is an Instruction and Parts Manual for the U.S. Burke Millrite MV-1 Vertical Milling Machine. The printer's mark on the original indicates an original publication date of Oct. 1963. This covers the Millrite machine with either a plain or compound dovetail ram. Several pages of general instructions are followed by exploded views of major sub assemblies with associated parts lists including some of the options like power table feed, coolant, vise and power feed head. Good information if you're looking to see how the machine was originally set up.

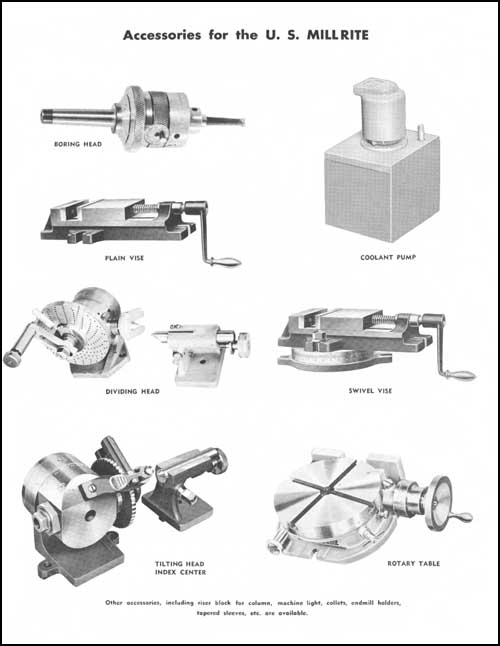

Sample Page:
Note: Download File Size is Approximately 7.4 Mb
|
